100G QSFP28 ZR4 80KM 1310nm LC Connector Single Mode Optical Transceiver
Description Inquire Now
Features:
QSFP28 MSA compliant
Hot pluggable 38 pin electrical interface
4 LAN-WDM lanes MUX/DEMUX design
4x25G electrical interface
Maximum power consumption 6.5W
LC duplex connector
Supports 103.125Gb/s aggregate bit rate
Up to 80km transmission on single mode fiber
Operating case temperature: 0℃ to 70℃
Single 3.3V power supply
RoHS 2.0 compliant
Applications:
100GBASE-ZR4 100G Ethernet Telecom networking
100GBASE-ZR4 100G Ethernet Telecom networking

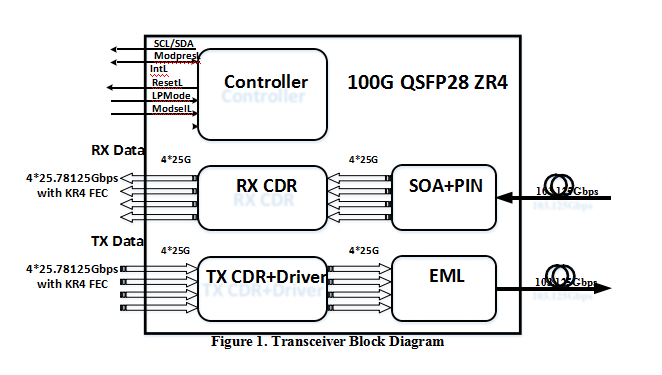

HL -Q31C-ZR4 is designed for 80km optical communication applications. This module contains 4- lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter- face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. A block diagram is shown in Figure 1
